3500 Series Rear Axles and Disc Brakes

Chevrolet K3500 Duramax 6600 Turbo Diesel, rear axle


2001 K3500 Reg. Cab, Dually 4x4 rear end,

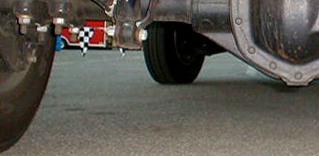

2001 3500 rear disc2, Copyright 2000 IAEI (91486 bytes) Click image to enlarge
Note all those leaves on those springs, and the "helpers" on top.

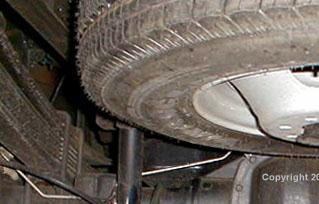

2001 3500 rear axle, Copyright 2000 IAEI (95278 bytes) Click image to enlarge in new window
Different angle, image of rear end

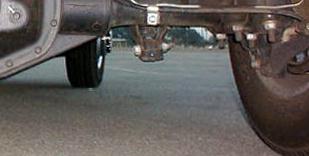

2001 3500 rear brake Copyright 2000 IAEI (73776 bytes) Click image to enlarge in new window
Closer view

2001 3500 rear balance and brake Copyright 2000 IAEI (59669 bytes) Click image to enlarge in new window
 Shows the rear driveshaft balancer, the rusty looking part

2001 3500 rear caliper Copyright 2000 IAEI (74041 bytes) Click image to enlarge in new window
Close up of the rear disc / caliper.

3500 rear disc1-Copyright 2000 IAEI (77382 bytes) Click image to enlarge in new window
Different angle of rear disc, closer on a different truck
